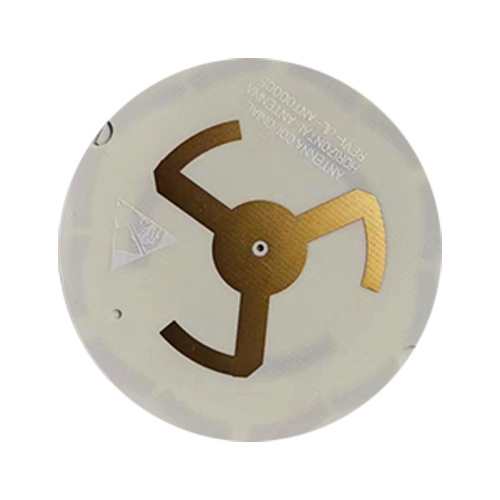

- Rogers rt/duroid 5880 4350B PCB
- 【Brief】：
Rogers R5880
Layers: 2L
Thickness: 1.6mm
Material: Rogers R5880
Min track width: 0.12mm
Min track space: 0.12mm
Min hole: 0.2mm
Cu: 2OZ
Soldermask: Green
Silkscreen: White
Surface finish: ENIG
Application: Communications
We are focusing on PCB and PCBA industry for more than 10 years, and mainly serving the European and American markets, as well as the north and South American and Southeast Asian markets. We hope to help you produce competitive quality products in your local market.
- 【Series】：Rogers PCB
*ROGERS and ISOLA material high-frequency PCB circuit board PCB RO3006, 4003435, 0453, 3588, 0600, 2601
*High-frequency plate processing instructions:
1. Our commonly used high-frequency plate supply are: ROGERS Rogers, TACONIC series, high-frequency microwave PTFE circuit board, Teflon Teflon, polytetrafluoroethylene circuit board
2. The commonly used inventory is Rogers 4000 series: RO4350B/RO4003C Thickness: 0.254 0.508 0.762
3. If we have no inventory, we need to confirm the delivery time to the plate supplier. If the supplier has inventory, the delivery time should be 1-5 days.
4. All high-frequency plates can be mixed with FR4 plates and PP, and Rogers 4000 series can synthesize FR4 mixed plates with RO4350BPP.
*Rogers PCB Capability
| Rogers PCB Capability | |
| Materials |
RO4003C, RO4350B, RO4360, RO4533, RO4535, RO4730, RO4232, RO4233, RO3003, RO3006,
RO3010, RO3035, RO3203, RO3206, RO3210, RO3730, RO5780, RO5880, RO6002, RO3202, RO6006
|
| Maximum Lager Count | 20 Layers |
| Maximum Panel Size | 17″ x 23″ (432 x 584 mm2) |
| Min. Board Thickness | 1.0mm Al, 4 mils (0.1 mm) FR4 |
| Copper Clad (inner) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz |
| Copper Clad (outer) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz |
| Surface Finishes | ENTEK 106A, Immersion Gold, HAL, immersion silver |
| Solder Mask | LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA |
| Minimum Trace (width) | 12.0 mils (0.30 mm) |
| Minimum Trace (spacing) | 12.0 mils (0.30 mm) |
| Minimum PAD-TO-PAD TOL. | ± 3 mils (± 0.76 mm) |
| Hole Size Tolerance (NPTH) | ± 2 mils (± 0.05 mm) |
| Hole Size Tolerance (PTH) | ± 3 mils (± 0.076 mm) |
| Minimum Hole Size | 20 mils (0.50 mm) |
| Outline Dimensional Tol. | < ± 10 mils (0.25 mm) |
| Ionic Cleanliness | < 5 mg/in2 of NaCl (0.775 mg/cm2) |
| Impedance Control | ± 10% (Differential) |
| Warpage |
< 1% |
*Application
