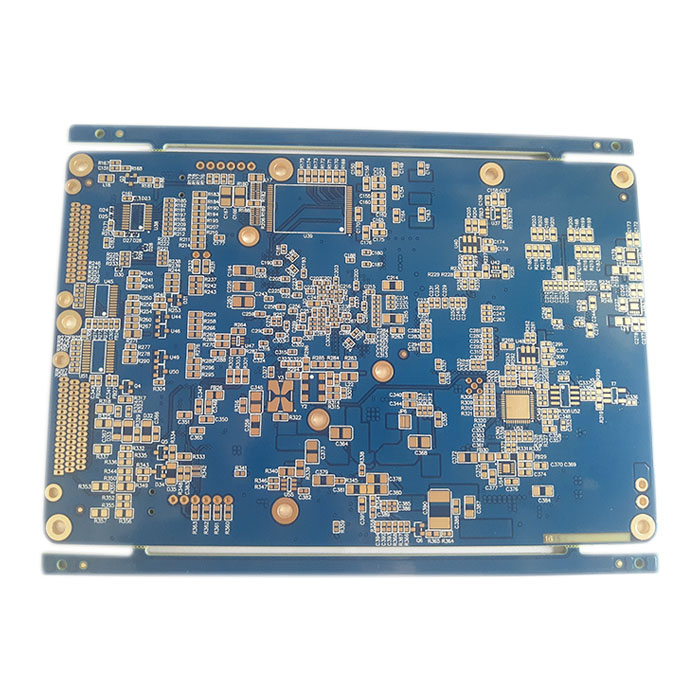

- 10Layer HDI PCB Board
- 【Brief】：
Model Number: HDI PCB
Place of Origin:Guangdong, China
Brand Name: LDSPCB
Base Material: FR-4
Copper Thickness: 0.5oz-1oz
Board Thickness: 1.6mm
Min. Hole Size: 0.10mm
Min. Line Width: 0.076mm/3mil
Min. Line Spacing: 0.076mm/3mil
Surface Finishing: ENIG
Impedance control: 90 /100±10% ohm
Flame Resistance: 94v0
Product application: UAV
Main service: customization
TG Value: FR-4 TG150
Standard: IPC-A-610G CLASS II
Package:Vacuum Package
- 【Series】：FR4 PCB
1.Capability:
| layer | 1-50 layer |
| High Density Interconnect(HDI) | 2+N+2 |
| Material type |
FR-4, High TG, Halogen Free, Rogers, ITEQ,ShengYi, Isola, Taconic, Arlon, Teflon, Rogers, Copper Based |
| Board thickness | 0.21mm to 7.0mm |
| Copper thickness | 0.5 OZ to 10 oz |
| Size | Max. Board Size: 580mm×1100mm |
| Min. Drilled Hole Size: 0.15 mm (6 mil)Min. Laser Drill 0.1mm(4mil) | |
| Min. Line Width: 3mil (0.075mm) | |
| Min. Line Spacing: 3mil (0.075mm) | |
| Surface finishing | HASL / HASL lead free,ENIG, Chemical Tin, Immersion Silver/Gold, OSP, Gold plating |
| Solder Mask Color | Green/Yellow/Black/White/Red/Blue |
| Tolerance | Shape tolerance: ±0.13(5mil) |
| Hole tolerance: PTH: ±0.075(3mil) NPTH: ±0.05(2mil) | |
| Certificate | UL, ISO 9001, ISO 14001 |
| Special requirements | Buried and blind via + Controlled impedance + BGA |
| Profiling | Punching, Routing, V-CUT, Beveling |
2.PCB Lead Time:

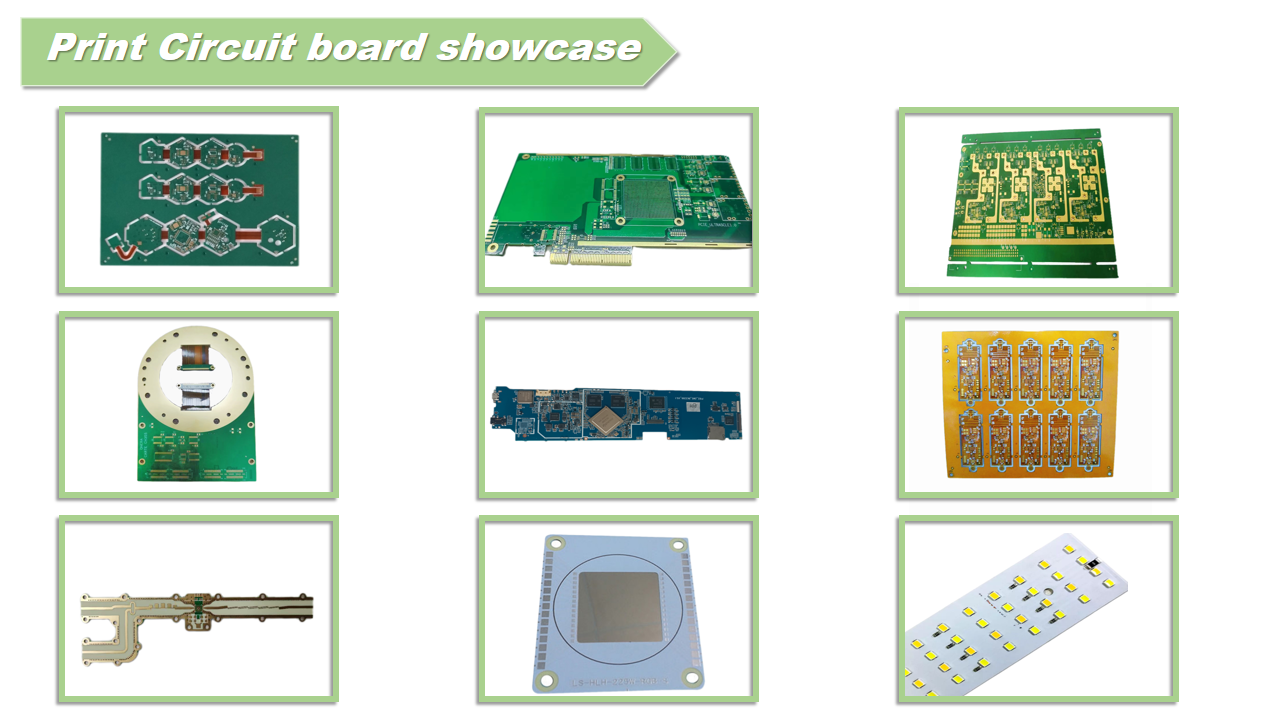

3.Products display
4.Products Application:

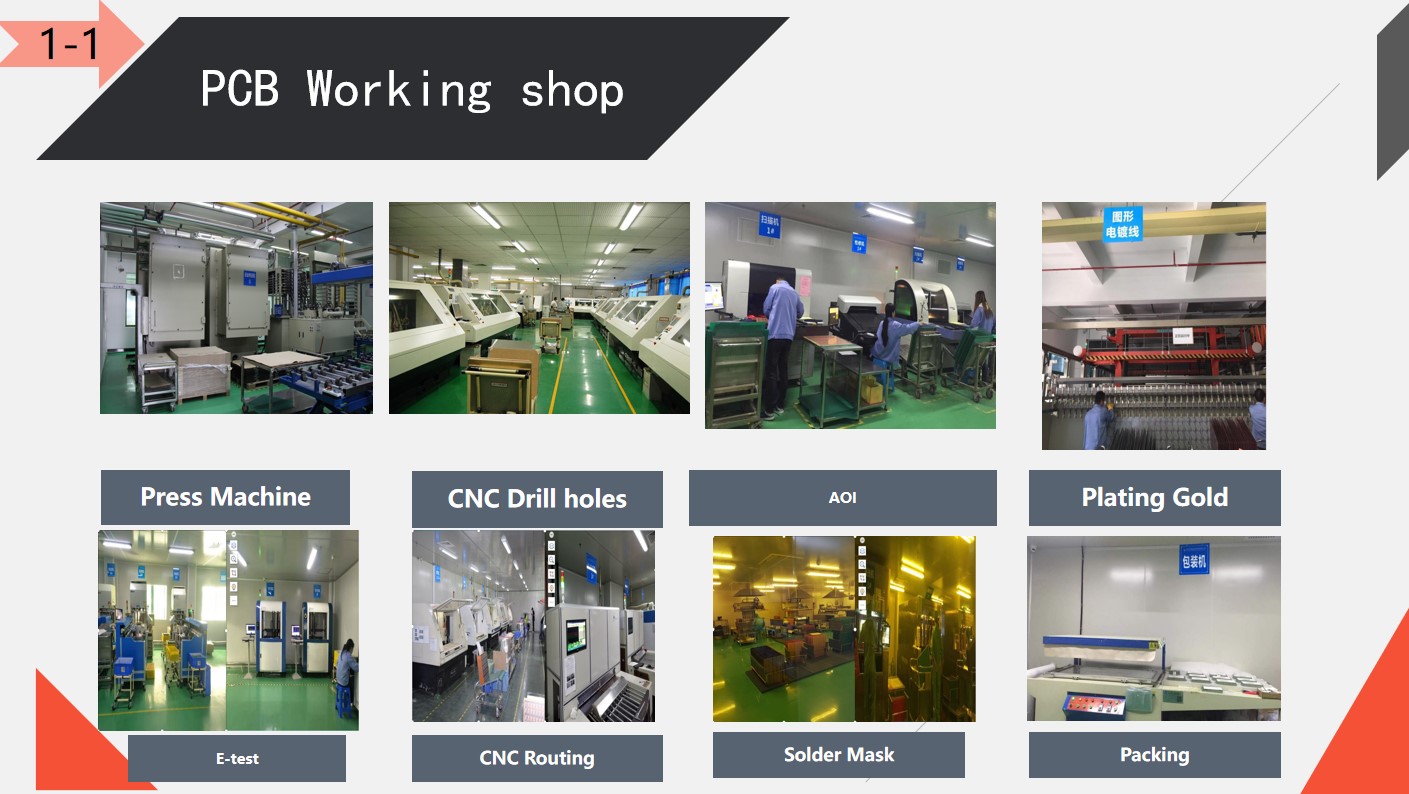

5.Factory Workshop:
